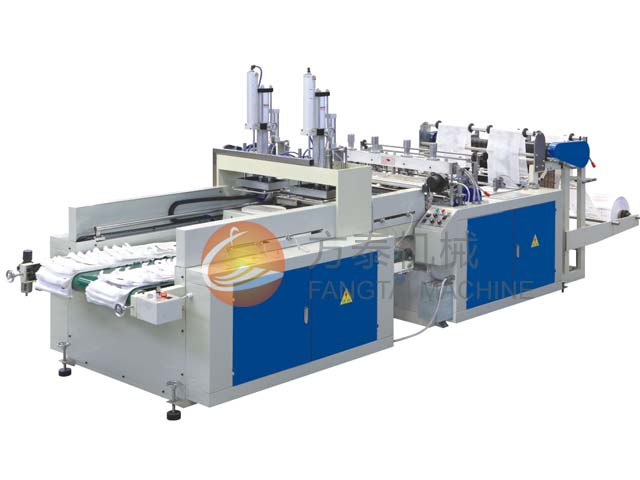

Automatic bag making machine is applied to manufacturing and printing the uncolored vest bags made of HDPE, LDPE roll film. It adopts PLC control, double step motor (optional: servo motor) fixed length and the liquid crystal touch screen actual display to finish the feeding, sealing, cutting, punching holes and transportding only in one process. Its of high defree of automation and good economic result.
Model |
FTHQ-400*2 |
FTHQ-450*2 |
Max bag width |
320mm*2 |
400mm*2 |
Max bag length |
600mm |
600mm |
Bag thickness |
0.015-0.035mm |
0.015-0.035mm |
Producing speed |
140-180pc/min*2 |
140-180pcs/min*2 |
Air compressor |
5kg/m2 |
5kg/m2 |
Total power |
7kw |
9kw |
Machine weight |
1400kg |
1600kg |
Dimension |
6000*1400*1600mm |
6000*1600*1700mm |
